Swarovski Optik ATX Spotting Scope System — A modular, angled viewing system
🧭 Product Introduction
The Swarovski ATX series is the angled viewing version of the Swarovski Optik top-of-the-line modular viewing system.
Its slanted viewing angle provides a more comfortable experience for extended use, making it especially suitable for birdwatchers and wildlife observation professionals.
ATX utilizes SWAROVISION optical technology and multi-coated lenses to deliver exceptional sharpness, contrast, and color fidelity.

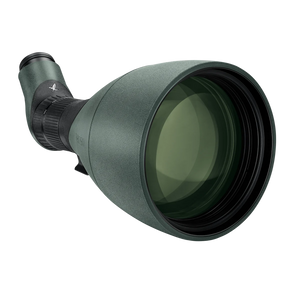

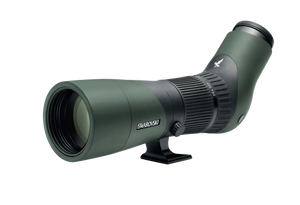

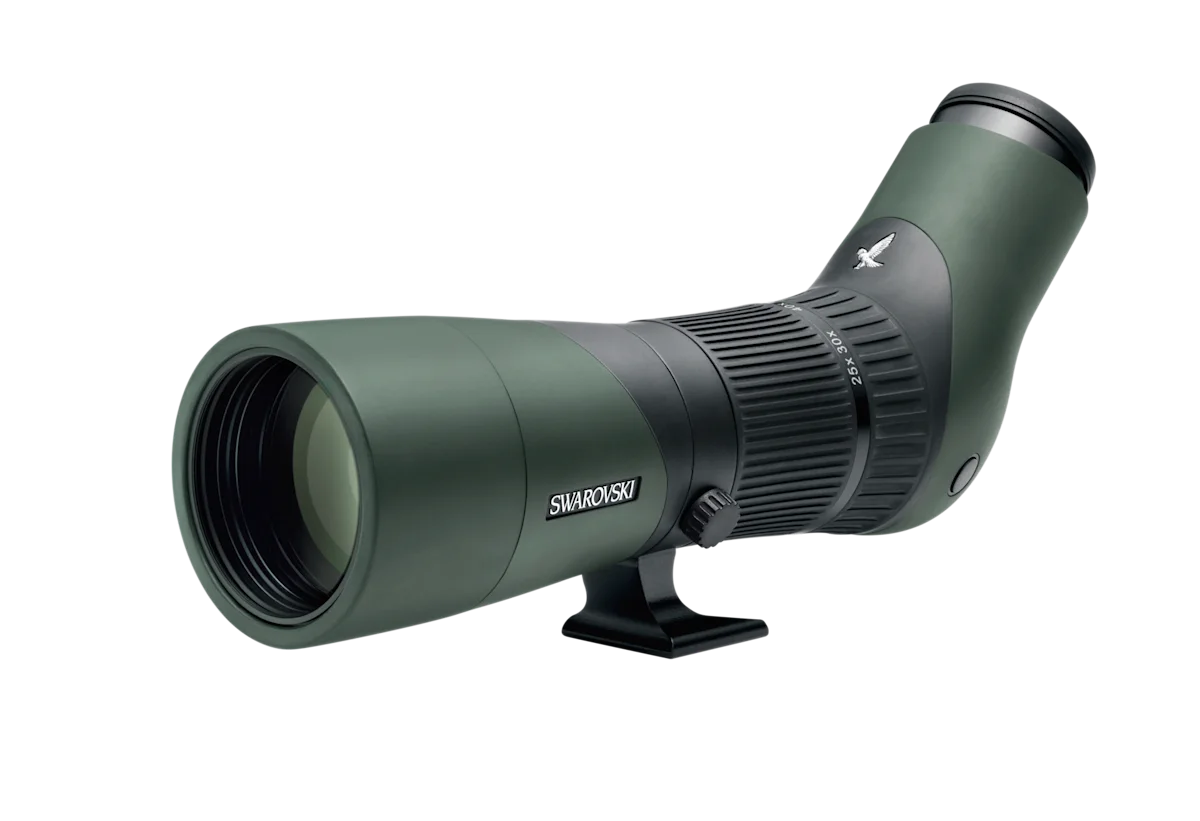

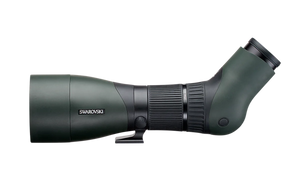

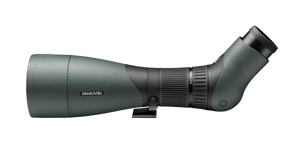

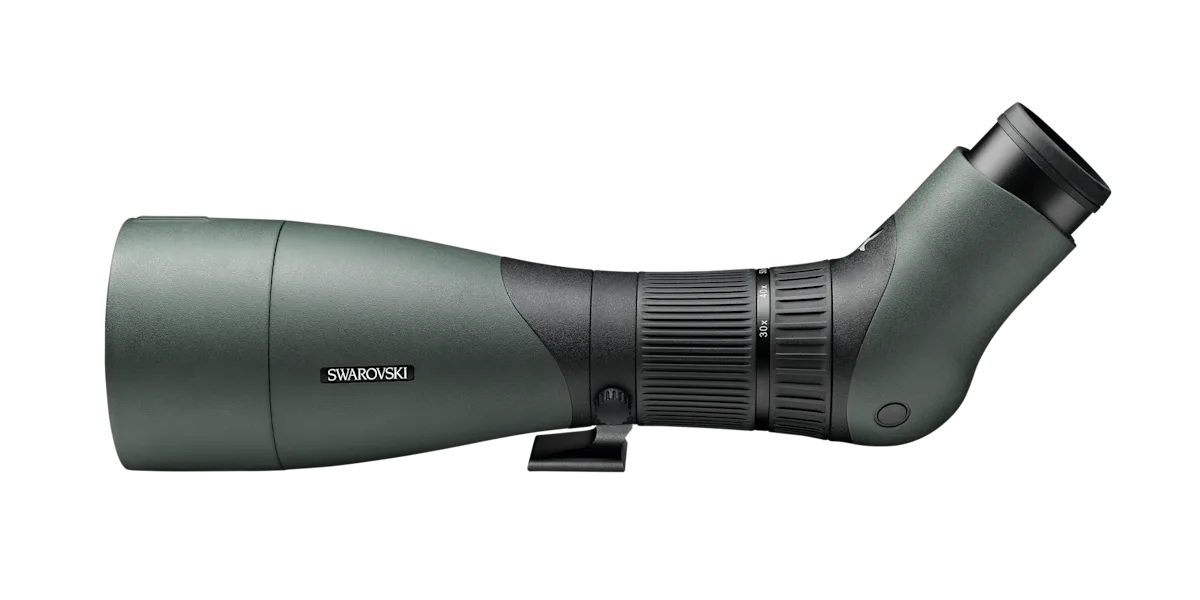

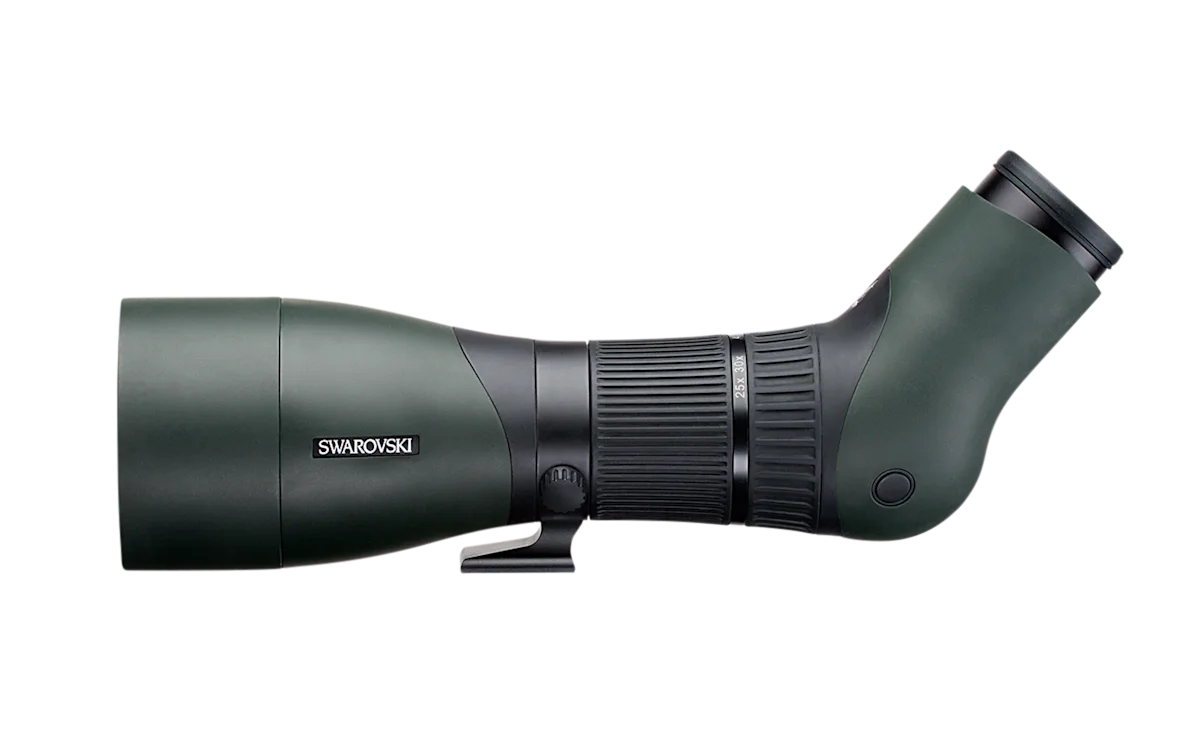

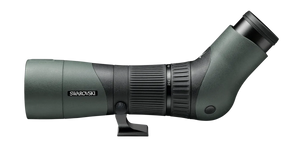

The system can be equipped with 65 mm, 85 mm, 95 mm or 115 mm objective lens modules, which can be freely combined to meet the observation needs of different distances and lighting conditions.
⚙️ Key Features
🔭 Angled Viewing
-
Observe the posture to ensure it is natural and reduce neck and back fatigue during prolonged use.
-
Suitable for use on a tripod for high or low angle observation.
-
Suitable for field observation, bird research and nature photography.
🎯 Modular and flexible combination
-

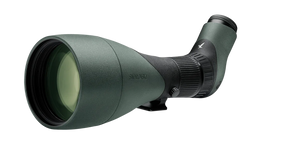

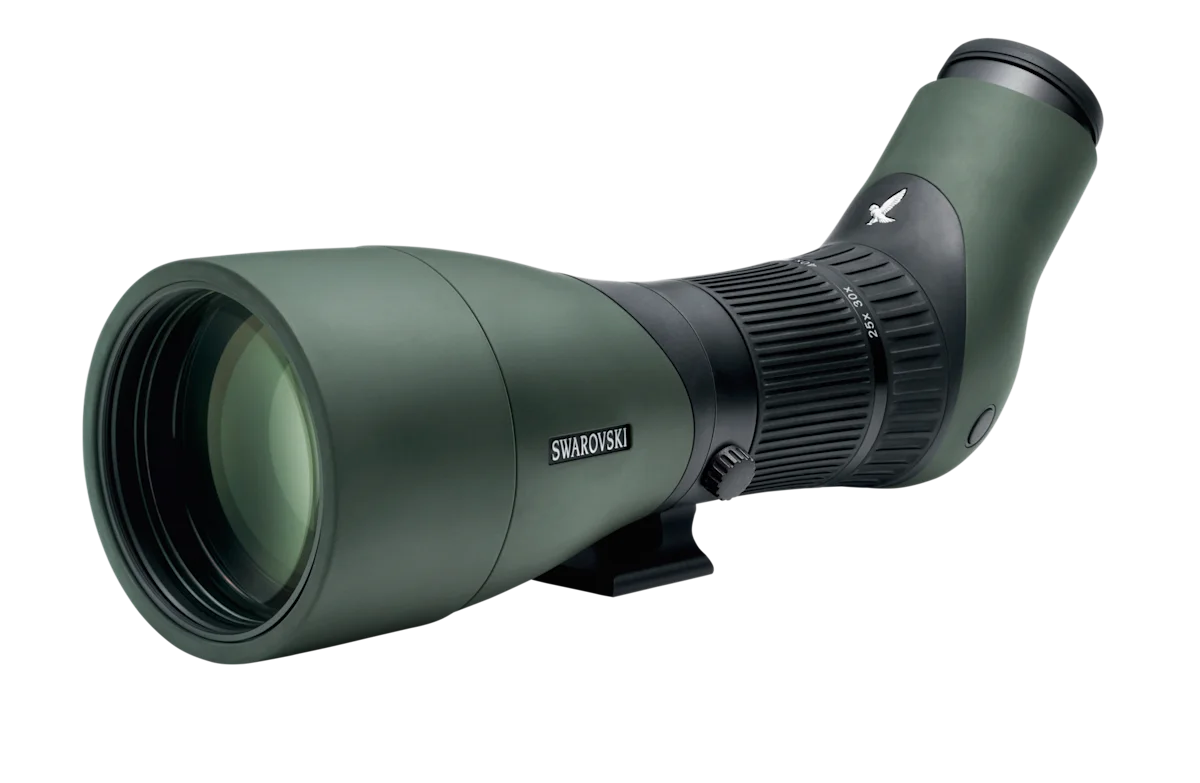

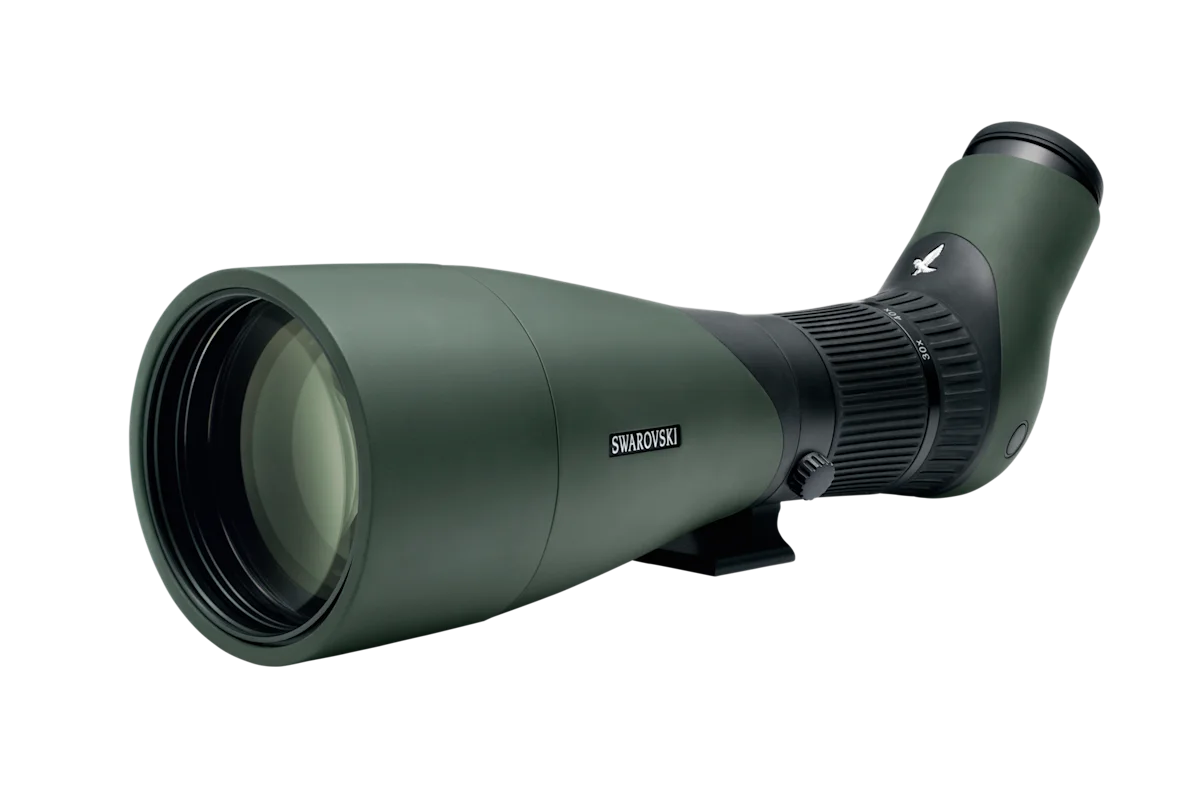

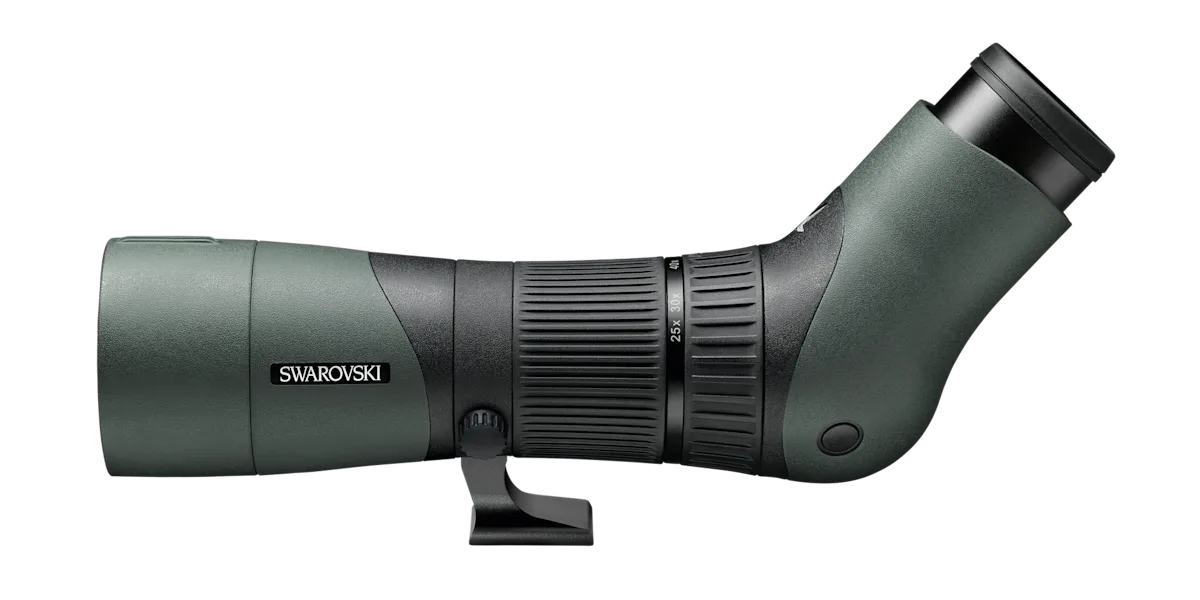

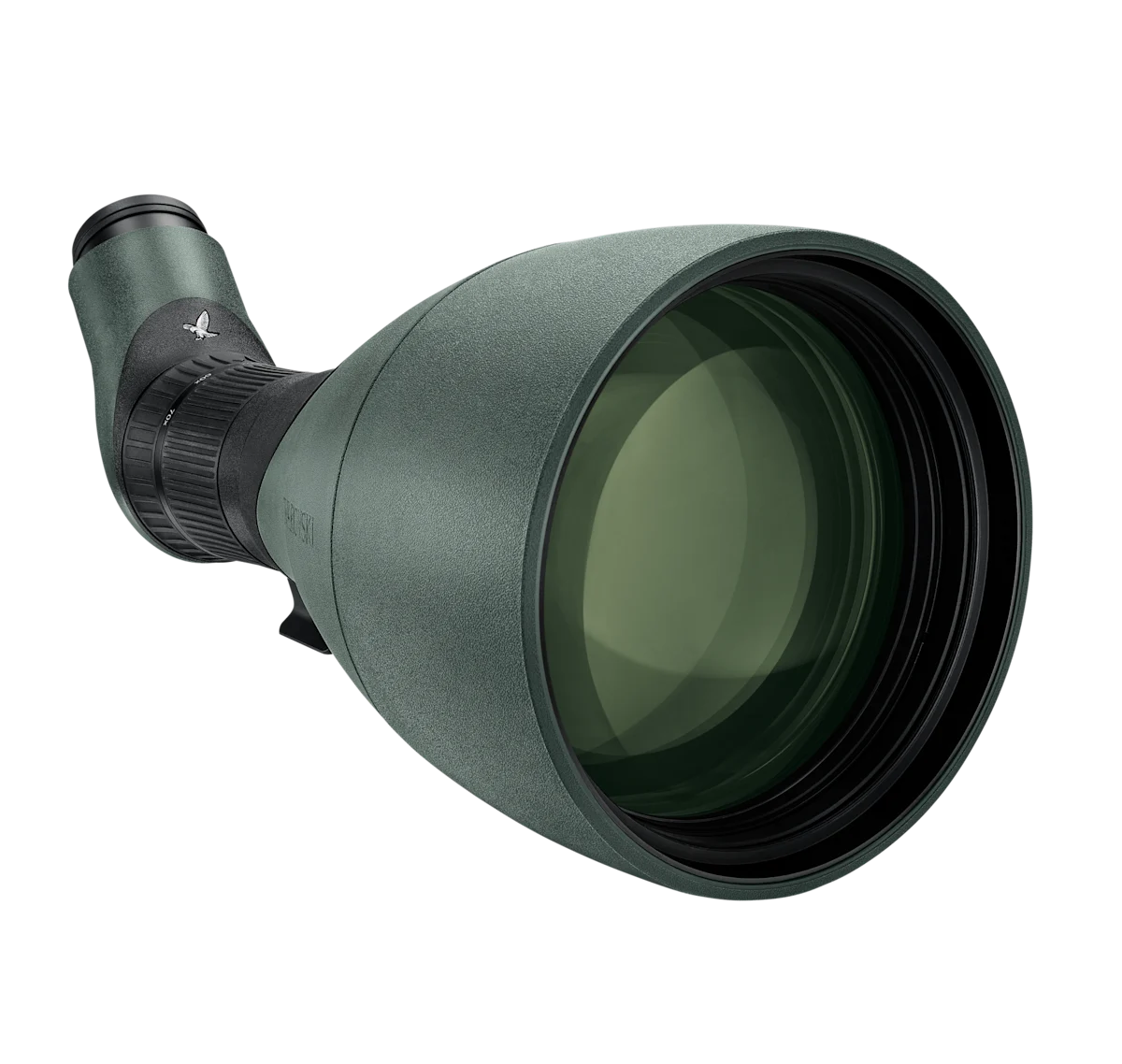

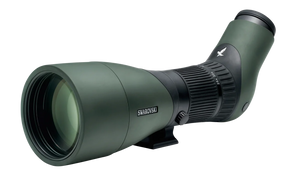

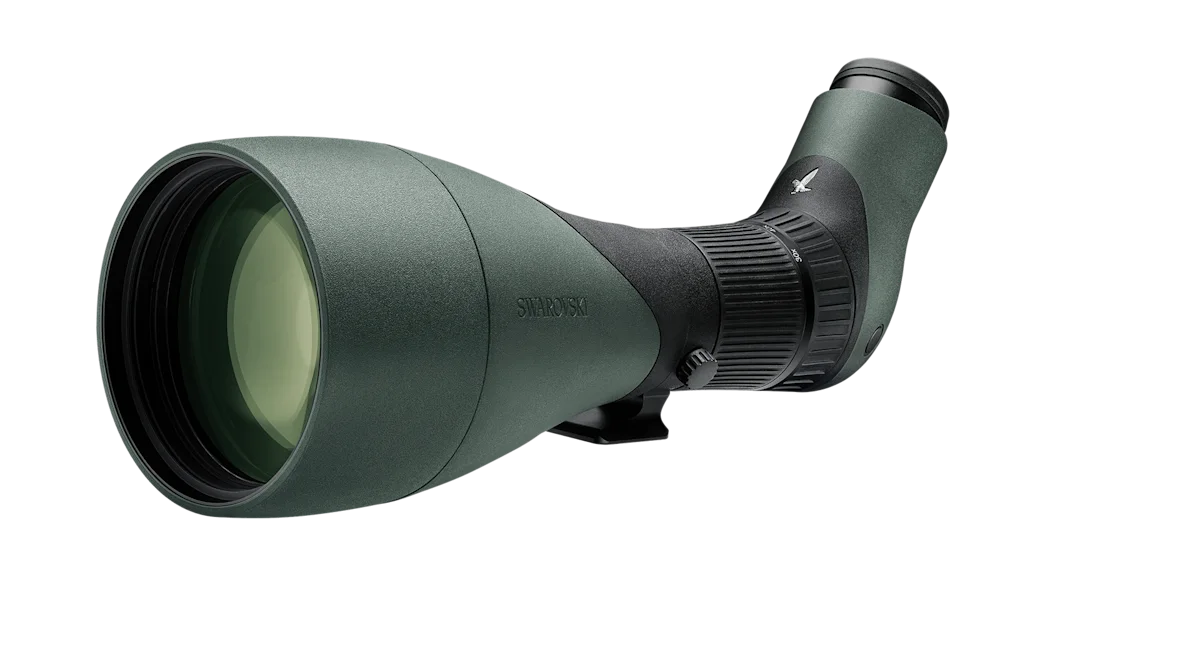

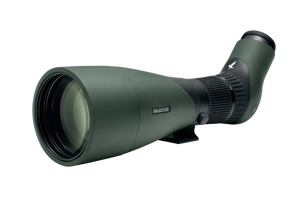

It can be used with 65 mm, 85 mm, 95 mm or 115 mm objective lens modules.
-
When paired with 65 mm/85 mm modules, the magnification is approximately 25–60×;
When paired with 95 mm/115 mm modules, the magnification is approximately 30–70×. -
It can be paired with a 1.7× magnifier to improve observation distance and detail.
-
The modular design makes it easy to carry, maintain, and upgrade.
🌈 Superior optical performance
-
It employs Swarovski SWAROVISION technology, combining field-level lenses with multi-layer coatings.
-
Provides images that are equally sharp from edge to center, with accurate color reproduction.
-
With high image contrast and sufficient brightness, it is suitable for low-light environments at sunrise or sunset.
💧 Durable and protective design
-
The mirror is waterproof and fogproof, and is filled with nitrogen to prevent condensation.
-
The high-strength metal structure and non-slip rubber armor provide excellent shock resistance.
-
Temperature range: −25 °C to +55 °C, suitable for various outdoor environments.
📏 Product Specifications
| project | 65 mm module | 85 mm module | 95 mm module | 115 mm module |
|---|---|---|---|---|
| Magnification | 25–60× | 25–60× | 30–70× | 30–70× |
| Minimum focusing distance | Approximately 2.1 m | Approximately 3.6 m | Approximately 4.8 m | Approximately 4.8 m |
| Length (of the entire system) | Approximately 337 mm | Approximately 371 mm | Approximately 427 mm | Approximately 505 mm |
| Weight (complete system) | Approximately 1.58 kg | Approximately 1.91 kg | Approximately 2.15 kg | Approximately 2.52 kg |
| objective module weight | Approximately 0.78 kg | Approximately 1.10 kg | Approx. 1.34 kg | Approximately 1.70 kg |
| Exit pupil diameter | Approximately 2.2–3.0 mm | Approximately 2.4–3.0 mm | Approximately 2.1–2.8 mm | Approximately 2.1–2.8 mm |
| Protective structure | Waterproof, anti-fog, nitrogen-filled | |||
| Operating temperature range | -25 °C to +55 °C | |||
| colour | green | |||
| Origin | Made in Austria |
📦 Package Contents
-
ATX Slanted View Mirror Main Unit × 1
-
Objective lens module × 1 (depending on version)
-
Lens and eyepiece protective caps × 1 set
-
Carrying bag × 1
-
Original instruction manual and warranty card × 1
🛒 Reasons to buy
✅ The slanted design makes long-term viewing more comfortable and natural.
✅ Modular system, which can be freely combined with 65–115 mm objective lens modules.
✅ High light transmittance coating and SWAROVISION technology deliver delicate and realistic image quality.
✅ Anti-fog and waterproof structure, adaptable to changing climates and extreme environments.
✅ Made in Austria, guaranteed for professional quality and durability.
| Magnification and aperture |
ATX 25-60x65, ATX 25-60x85, ATX 30-70x95, ATX 30-70x115 |
|---|
